Network cabinet

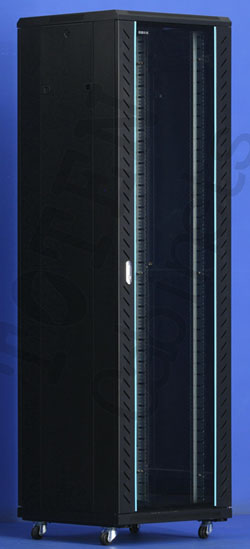

Network Cabinet-A4
Feature:
■   Exquisite design with precise dimension and craftsmanship；
■   Toughened glass door, vented front door border and rear door ；
■   Blue Zinc Moungting Profiles,free of static
■   Adjustable feet and heavy duty castors are available simultaneously；
■   Cable entry on the top cover and bottom panel with adjustable sizes ；
■   Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;
■   Efficient and reliable cabinet connection by baying kit.
   ■   Removable side panels to ease maintain
■  Around 1/3 assembled original volume when flat pack.
■  Standard Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494；  PART1、DIN41494; PART7 Standard
 ■  Loading capacity Static loading: 800KG (with adjustable feet)
 ■  Degree of protection IP20
 ■  Main material SPCC cold rolled steel
Thickness of Steel: mounting profile: 2.0mm;
mounting angle: 1.5mm; others: 1.2mm
 ■  Surface finish Degreasing, phosphoric, powder coat

Model No.
Capacity
 ( U )
Width
(mm)
Depth
(mm)
Height
(mm)
Packing Dimension
W*D*H
Volume
(CBM)
A4.6618. ■1■■
18
600
600
988
670*670*1028
0.4615
A4.6818. ■1■■
800
670*870*1028
0.5992
A4.6018. ■1■■
1000
670*1070*1028
0.7370
A4.6622. ■1■■
22
600
600
1166
670*670*1196
0.5369
A4.6822. ■1■■
800
670*870*1196
0.6971
A4.6022. ■1■■
1000
670*1070*1196
0.8574
A4.6627. ■1■■
27
600
600
1388
670*670*1418
0.6460
A4.6827. ■1■■
800
670*870*1418
0.8266
A4.6027. ■1■■
1000
670*1070*1418
1.0166
A4.6632. ■1■■
32
600
600
1610
670*670*1640
0.7362
A4.6832. ■1■■
800
670*870*1640
0.9560
A4.6032. ■1■■
1000
670*1070*1640
1.1757
A4.6637. ■1■■
37
600
600
1833
670*670*1863
0.8363
A4.6837. ■1■■
800
670*870*1863
1.0859
A4.6037. ■1■■
1000
670*1070*1863
1.3356
A4.6237. ■1■■
1200
670*1270*1863
1.5852
A4.6642. ■1■■
42
600
600
2055
670*670*2085
0.9360
A4.6842. ■1■■
800
670*870*2085
1.2153
A4.6042. ■1■■
1000
670*1070*2085
1.4947
A4.6242. ■1■■
1200
670*1270*2085
1.7741
A4.8642. ■1■■
800
600
870*670*2085
1.2513
A4.8842. ■1■■
800
870*870*2085
1.5781
A4.8042. ■1■■
1000
870*1070*2085
1.9409
A4.8242. ■1■■
1200
870*1270*2085
2.3037
A4.6647. ■1■■
47
600
600
2277
670*670*2307
1.0356
A4.6847. ■1■■
800
670*870*2307
1.3448
A4.6047. ■1■■
1000
670*1070*2307
1.6539
A4.6247. ■1■■
1200
670*1270*2307
1.9630
A4.8647. ■1■■
800
600
870*670*2307
1.3448
A4.8847. ■1■■
800
870*870*2307
1.7462
A4.8047. ■1■■
1000
870*1070*2307
2.0673
A4.8247. ■1■■
1200
870*1270*2307
2.5490
