Industrial Control Cabinet

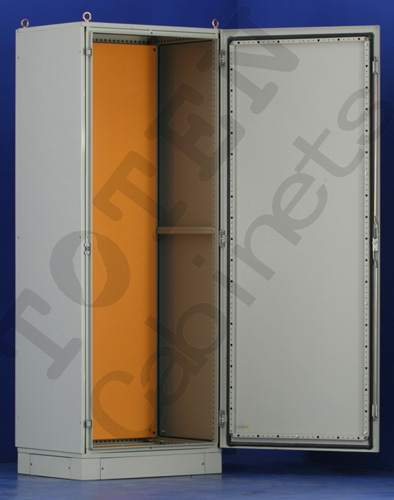

Industrial control cabinet-CC Control Enclosure
Feature：
■ Strong and stable profiled bar with prepared mounting holes (integrated size: 25mm);
■ Stable structure, exquisite image, spacious inner mounting space, common used accessories;
■ Three point bolted luxury lock, side panels and back panels are fixed by screws;
■ Door can be open to 130 degrees, open left or right freely；
■ All-round Polyurethane Gasket between door and Frame with good sealing performance;
■ 3-sectioned bottom panel, easy to enter cables;
■ M8 earthling pole mounted on the body, door and the mounting panel;
■ A whole mounting panel, can be adjusted.
 ■  Standard Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494；  PART1、DIN41494; PART7 Standard
 ■  Loading capacity Static loading: 1000KG
 ■  Degree of protection IP20
 ■  Main material SPCC cold rolled steel
Thickness of Steel: mounting profile: 2.0mm; tray: 2.0mm;
mounting angle: 1.5mm; others: 1.2mm
 ■  Surface finish Frame: degreasing, pickling, phosphoric, dip-coat primed,
powder coat Others: degreasing, pickling, phosphoric, powder coat

Model No.
Width
(mm)
Depth
(mm)
Height
(mm)
Packing Dimension
 W*D*H
Volume
(CBM)
CC.6418.9■00
600
400
1800
670*470*1830
0.5763
CC.6420.9■00
2000
670*470*2030
0.6392
CC.6422.9■00
2200
670*470*2230
0.7022
CC.8418.9■00
800
400
1800
870*470*1830
0.7483
CC.8420.9■00
2000
870*470*2030
0.8301
CC.8422.9■00
2200
870*470*2230
0.9118
CC.0418.9■00
1000
400
1800
1070*470*1830
0.9203
CC.0420.9■00
2000
1070*470*2030
1.0209
CC.0422.9■00
2200
1070*470*2230
1.1215
CC.2418.9■00
1200
400
1800
1270*470*1830
1.0923
CC.2420.9■00
2000
1270*470*2030
1.2117
CC.2422.9■00
2200
1270*470*2230
1.3311
CC.6518.9■00
600
500
1800
670*570*1830
0.6989
CC.6520.9■00
2000
670*570*2030
0.7753
CC.6522.9■00
2200
670*570*2230
0.8516
CC.8518.9■00
800
500
1800
870*570*1830
0.9075
CC.8520.9■00
2000
870*570*2030
1.0067
CC.8522.9■00
2200
870*570*2230
1.1059
CC.0518.9■00
1000
500
1800
1070*570*1830
1.1161
CC.0520.9■00
2000
1070*570*2030
1.2381
CC.0522.9■00
2200
1070*570*2230
1.3601
CC.2518.9■00
1200
500
1800
1270*570*1830
1.3247
CC.2520.9■00
2000
1270*570*2030
1.4695
CC.2522.9■00
2200
1270*570*2230
1.6143
CC.6618.9■00
600
600
1800
670*670*1830
0.8215
CC.6620.9■00
2000
670*670*2030
0.9113
CC.6622.9■00
2200
670*670*2230
1.0010
CC.8618.9■00
800
600
1800
870*670*1830
1.0667
CC.8620.9■00
2000
870*670*2030
1.1833
CC.8622.9■00
2200
870*670*2230
1.2999
CC.0618 9■00
1000
600
1800
1070*670*1830
1.3119
CC.0620.9■00
2000
1070*670*2030
1.4553
CC.0622.9■00
2200
1070*670*2230
1.5987
CC.2618.9■00
1200
600
1800
1270*670*1830
1.5571
CC.2620.9■00
2000
1270*670*2030
1.7273
CC.2622.9■00
2200
1270*670*2230
1.8975
CC.6818.9■00
600
800
1800
670*870*1830
1.0667
CC.6820.9■00
2000
670*870*2030
1.1833
CC.6822.9■00
2200
670*870*2230
1.2999
CC.8818.9■00
800
800
1800
870*870*1830
1.3851
CC.8820.9■00
2000
870*870*2030
1.5365
CC.8822.9■00
2200
870*870*2230
1.6879
CC.0818.9■00
1000
800
1800
1070*870*1830
1.7035
CC.0820. 9■00
2000
1070*870*2030
1.8897
CC.0822. 9■00
2200
1070*870*2230
2.0759
CC.2818. 9■00
1200
800
1800
1270*870*1830
2.0220
CC.2820. 9■00
2000
1270*870*2030
2.2429
CC.2822. 9■00
2200
1270*870*2230
2.4639
