Open Rack

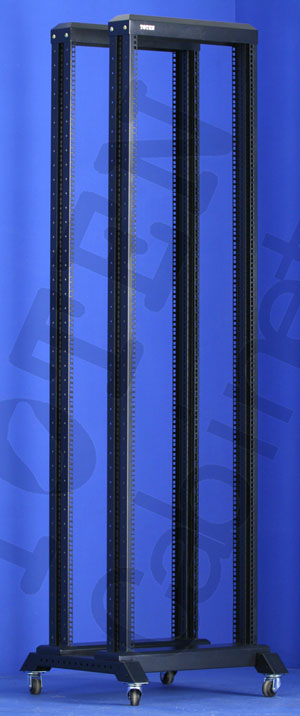

Open Rack-DR
Feature:
■
M
odular design, easily assemble and disassemble for delivery, low-cost;
■
Various optional accessories according to requirements (cable management slot, removable working panel, etc.,).
■ Standard
Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494; PART1、DIN41494; PART7 Standard
■ Loading capacity
Static loading: 150KG
■ Main material
SPCC cold rolled steel
Thickness: Plinth and front beams: 1.2mm;
Bottom beams and pole 1.5mm
■ Surface finish
Degreasing, phosphoric, powder coat
Model No.
Capacity
(U)
Width
(mm)
Depth
(mm)
Height
(mm)
Dimension
W*D*H
Volume
(CBM)
DR.6618.90
■
■
18
600
600
936
630*310*1000
0.1953
DR.6622.90
■
■
22
600
600
1113.8
630*310*1180
0.2305
DR.6627.90
■
■
27
600
600
1336
630*310*1400
0.2734
DR.6632.90
■
■
32
600
600
1558.1
630*310*1630
0.3183
DR.6637.90
■
■
37
600
600
1780.5
630*310*1850
0.3613
DR.6642.90
■
■
42
600
600
2002.8
630*310*2070
0.4043
DR.6647.90
■
■
47
600
600
2225
630*310*2290
0.4472
